Tuya 5-Level Water Meter Sensor: Intelligent Water Level Controller
Overview
The Tuya 5-level meter sensor is a cutting-edge WiFi intelligent water level controller designed for comprehensive water level monitoring and management. This versatile device is perfect for various applications, including HVAC systems, hot water processes, municipal drainage, boilers, water towers, storage tanks, and breeding irrigation systems.
Key Features

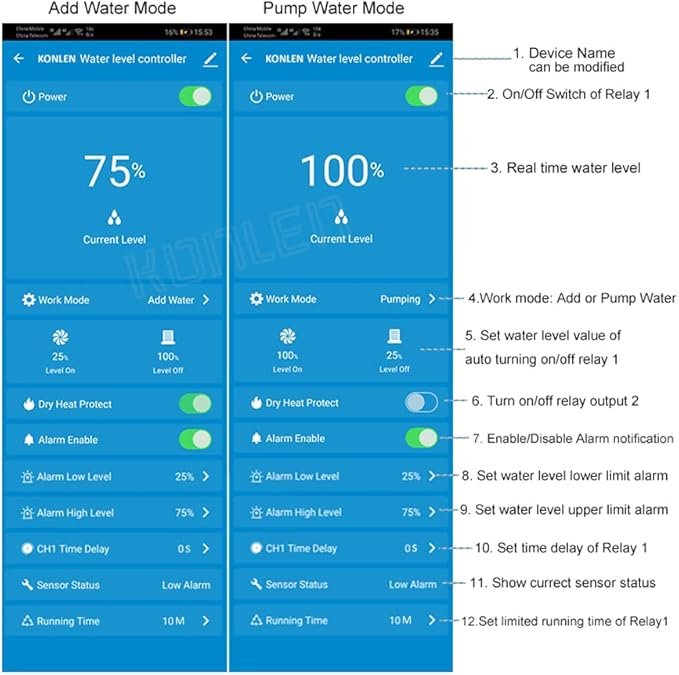

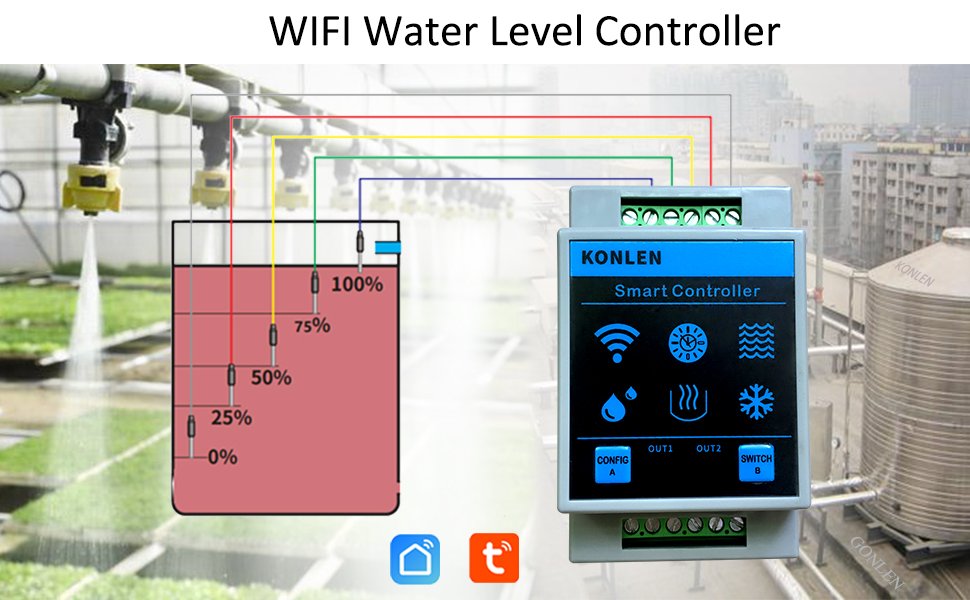

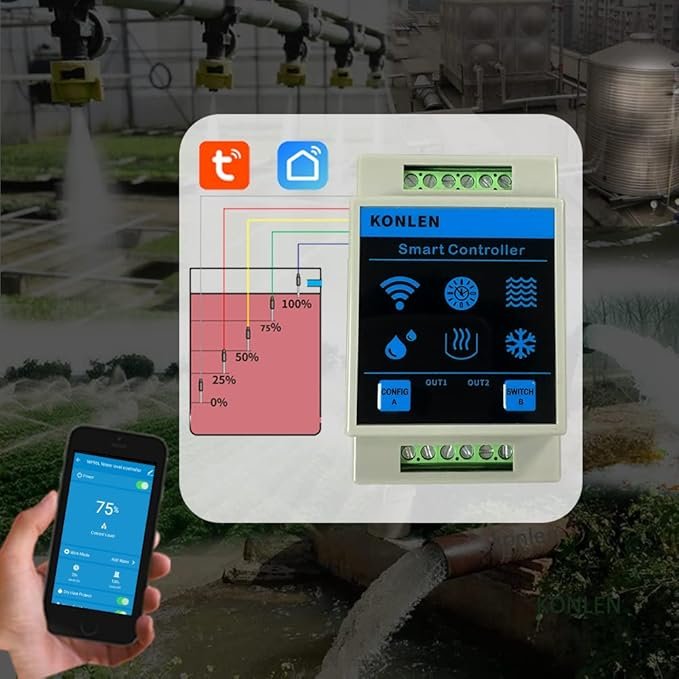

- Real-Time Supervision: The accompanying app provides real-time water level monitoring, displaying five distinct levels: 0%, 25%, 50%, 75%, and 100%. As the water level changes, the app updates accordingly, ensuring precise control and oversight.
- Two Relay Outputs Control: Equipped with two relay outputs, the Tuya sensor can seamlessly control water pumps and protect against dry heating. Relay output 1 manages water pump operations, while relay output 2 ensures anti-dry heating protection.

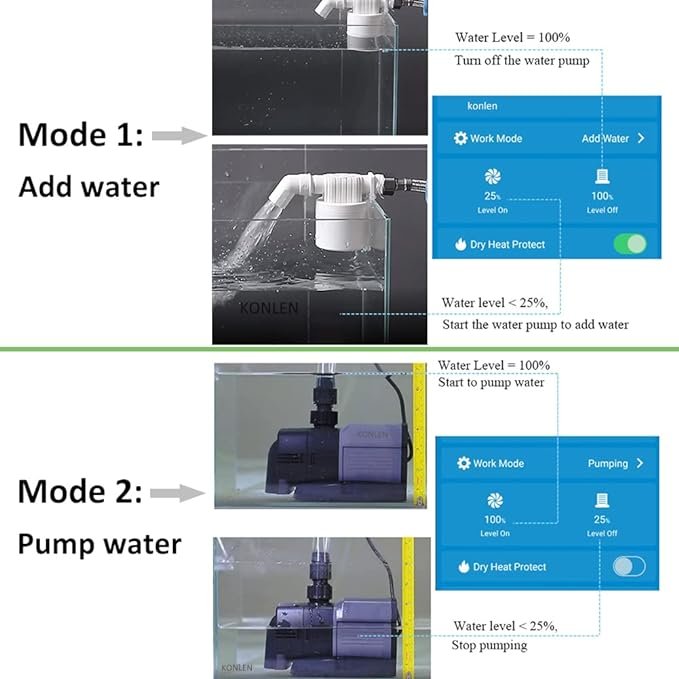

- Dual Working Modes: Users can preset the “Add Water” or “Pump Water” working modes to automatically turn the relays on or off when the water level reaches the designated value.
- Water Level Alarms: The device features upper and lower limit alarms, providing real-time push notifications to users’ smartphones, ensuring timely alerts for water level changes.
Specifications

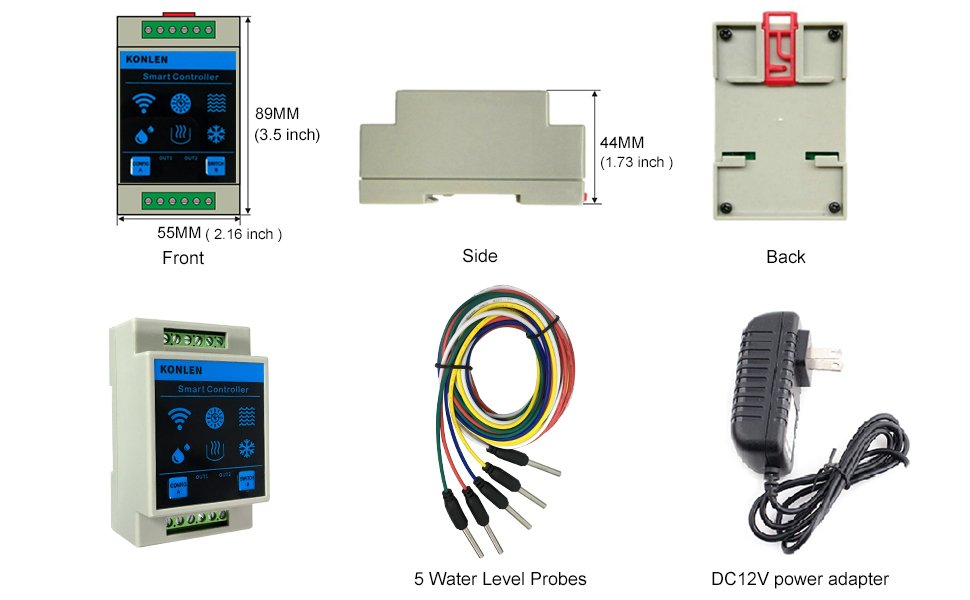

The Tuya 5-level meter sensor comes with the following components:
- One English manual instruction

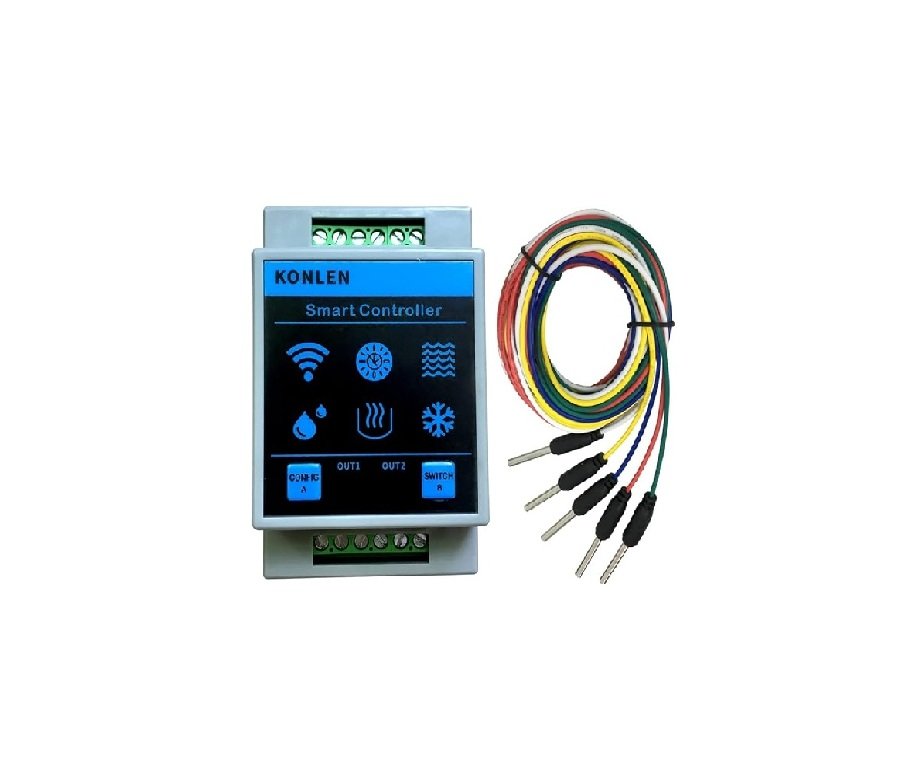

- One WiFi water level controller
- One DC12V power adapter
- Five water level sensors with varying cable lengths:
- White cable: 3.5 meters (approx. 11.48ft)
- Red cable: 3.1 meters (approx. 10.17ft)
- Yellow cable: 2.3 meters (approx. 7.54ft)
- Green cable: 1.1 meters (approx. 3.60ft)
- Blue cable: 1 meter (approx. 3.28ft)
Applications
The Tuya water level controller is ideal for various water level control scenarios:
- HVAC systems
- Hot water processes
- Municipal drainage
- Boilers
- Water towers
- Storage tanks
- Breeding irrigation systems
- NOTE – The contact current capacity is 10A for resistive load and 2A for inductive load. It can control 2000W resistive load or 500W motor /water pump. Larger loads require AC contactor expansion.
Conclusion
Enhance your water level monitoring and control with the Tuya 5-level meter sensor. Its real-time supervision, dual relay outputs, and intelligent working modes make it an indispensable tool for maintaining optimal water levels across multiple applications. Don’t miss out on this innovative solution for efficient water management and ensuring the smooth operation of your systems.
