SONOFF RE5V1C: Overview and Features

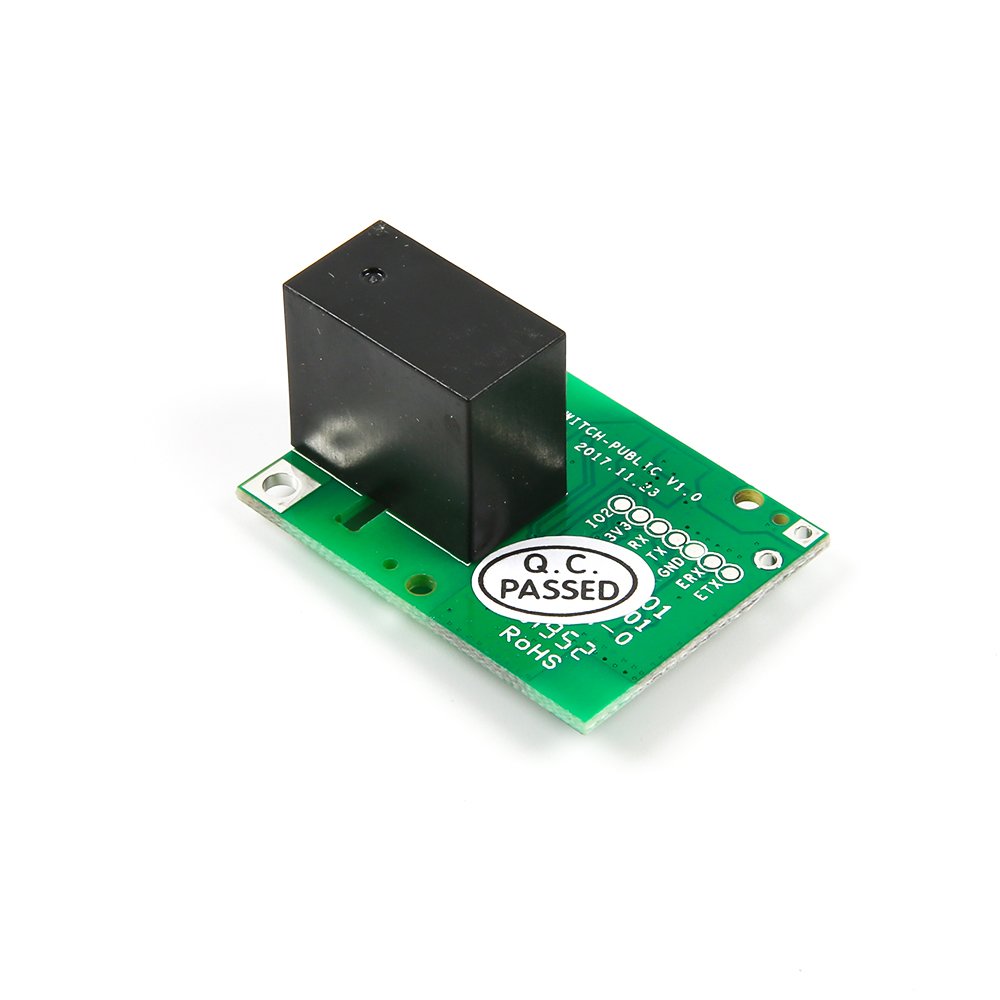

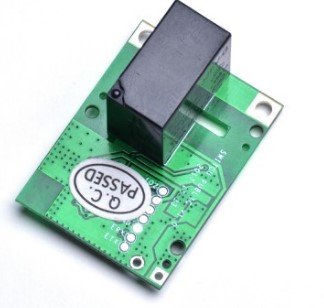

The SONOFF RE5V1C is a single-channel switch based on the ESP8285 Wi-Fi SOC. Unlike some other modules, it doesn’t require additional peripheral circuits. Once powered, it can connect to a Wi-Fi network for remote control via mobile devices or LAN communication. Here are the key points:
Product Introduction:
The RE5V1C is designed for mobile devices and IoT applications.
It operates on a 5V DC power supply.
The module can work in either inching or self-locking mode.
Technical Specifications:
Voltage: 4.75V (working range)
Wi-Fi Parameters:
Wireless standard: IEEE 802.11b/g/n
Main chip: ESP8285
Frequency range: 2.412GHz-2.484GHz
Transmit power: 802.11b: 20±2dBm (@11Mbps), 802.11g: 17±2dBm (@54Mbps)
Antenna type: 2.4GHz ceramic antenna

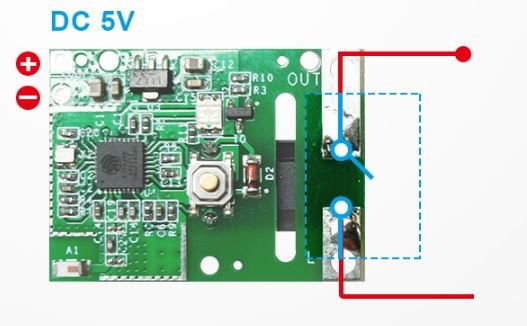

Interface Definition:
DC power supply positive (5V DC)
DC power supply negative (GND)

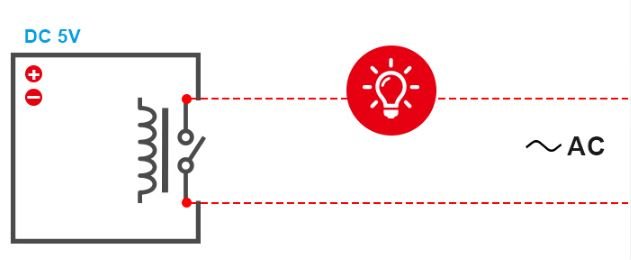

Output load (AC L end interface)
Module Functions:
Single-Channel Switch: The RE5V1C can control a connected appliance locally or remotely via the app.
Inching Mode: In this mode, users can toggle the connected device on/off using a button press.
Self-Locking Mode: Users can instantly turn the connected appliance on/off when the module is in self-locking mode.
LAN Control: Even without internet access, you can control the device over the local network.
App Support: Use the free eWeLink app (available for iOS and Android) for remote control.
Dimensions:
Nano size: 34.5mm x 25mm x 19mm
Potential Uses:
Smart Home Automation:
Control lights, fans, or other appliances remotely.
Set schedules or trigger events based on time or conditions.
Integrate with other smart devices for a seamless home automation experience.
Security Applications:
Use it to activate alarms, door locks, or surveillance cameras.
Create custom security scenarios based on sensor inputs.
DIY Projects:

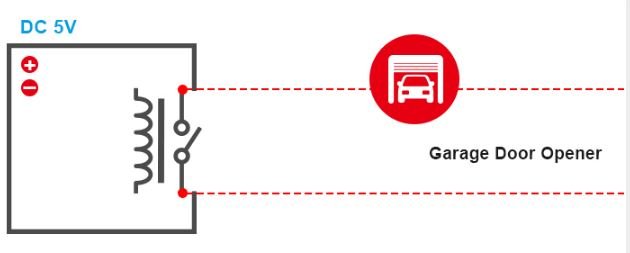

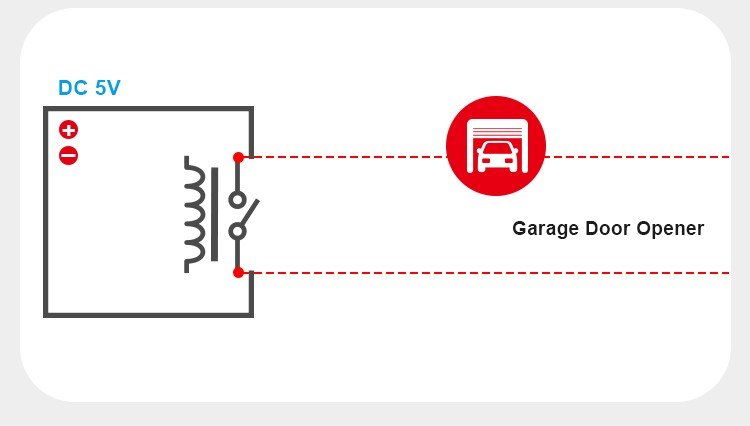

Build your own smart garage door opener.
Create a smart pet feeder or watering system.
Automate garden lights or sprinklers.
Specifications:
Nano Size

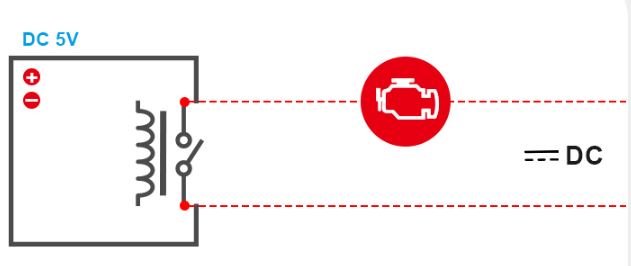

Dry Contact Output
Low Power Supply – 5VDC low voltage input
2 Working modes – self-locking and inching mode
LAN Control – Turn on/off the device even when WiFi has no Internet access
App Support – Free iOS and Android mobile App eWeLink
Remote ON/OFF–Turn electrical devices on/off from anywhere
Sync Status–Real-time device status provided to App
Timing–Set scheduled/countdown timers to turn on/off at specified time
Share Control– Control your smart home together with your family
Scene–Turn on/off a gang of devices with one tap
Smart Scene–Triggered on/off by temp, hum or other environmental conditions from sensor
Compatibility –Works perfectly with Amazon Alexa, Google Assistant, IFTTT, Google Nest
